MSI · Motherboard

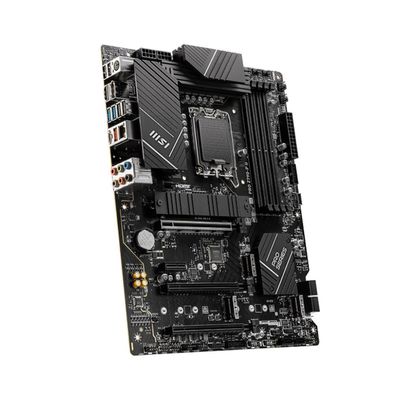

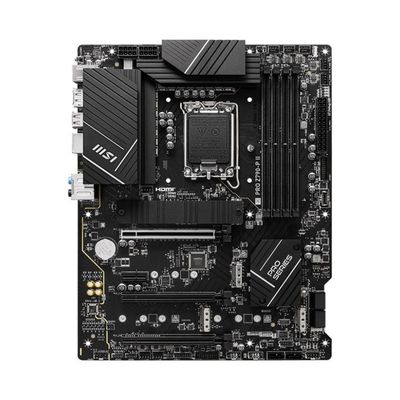

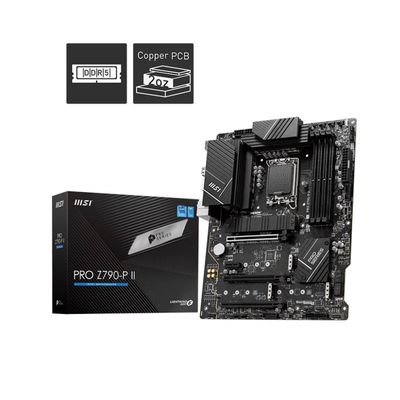

MSI - PRO Z790-P II
Part #PRO-Z790-P-II
audio chipset: Realtek ALC897audio channels: 7.1memory max: 256memory slots: 4
Хамгийн бага үнэ
₮ 750,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 750,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek ALC897 |
| audio channels | 7.1 |
| memory max | 256 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | LGA 1700 |
| chipset | Intel Z790 |
| m2 slots | key: M, size: 22110/2280/2260/2242, interface: PCIe 4.0 x4, key: M, size: 2280/2260/2242, interface: PCIe 4.0 x4, key: M, size: 2280/2260/2242, interface: PCIe 4.0 x4 / SATA, key: M, size: 2280/2260/2242, interface: PCIe 4.0 x4 / SATA |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 4.0, lanes: 4, quantity: 1, gen: 3.0, lanes: 1, quantity: 2 |
| ecc support | false |
| fan headers pump | 1 |
| fan headers cpu fan | 1 |
| fan headers case fan | 6 |
| form factor | ATX |
| rgb headers argb 5v | 2 |
| rgb headers rgb 12v | 2 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 2 |
| usb headers usb 3 2 gen 2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | false |
| storage devices sata 6 gb s | 6 |
| back panel ports | 1 x Keyboard / Mouse combo port, 1 x DisplayPort, 1 x HDMI, 4 x USB 2.0 ports, 2 x USB 3.2 Gen 1 5Gbps ports (Type-A), 1 x USB 3.2 Gen 2 10Gbps port (Type-A), 1 x USB 3.2 Gen 2x2 20Gbps port (Type-C), 1 x 2.5G LAN port (RJ45), 1 x Flash BIOS Button, 6 x Audio Connectors |
| onboard ethernet | speed: 2.5 Gb/s, controller: Intel 2.5Gbps LAN |
| power connectors cpu power | 8-pin, 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| back connect connectors | false |
