Asus · Motherboard

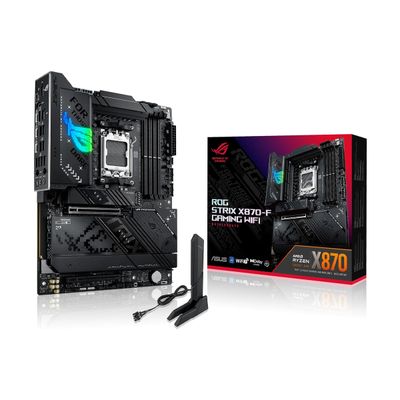

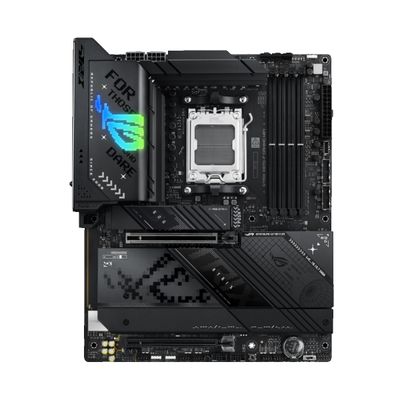

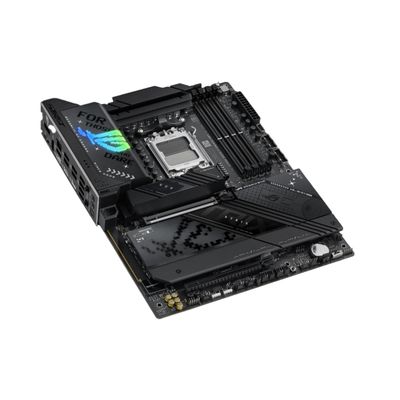

Asus - Rog Strix X870-F Gaming Wifi
Part #90MB1IV0-M0EAY0
audio chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080audio channels: 7.1memory max: 192memory slots: 4
Хамгийн бага үнэ
₮ 1,750,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 1,750,000
Байна
Тех. үзүүлэлт
| audio chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| audio channels | 7.1 |
| memory max | 192 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD X870 |
| m2 slots | id: 69b3ab5ab3d0c7b56c55b00e, key: M, size: 2242/2260/2280, interface: PCIe 5.0 x4, id: 69b3ab5ab3d0c7b56c55b00f, key: M, size: 2242/2260/2280/22110, interface: PCIe 5.0 x4, id: 69b3ab5ab3d0c7b56c55b010, key: M, size: 2280, interface: PCIe 4.0 x4, id: 69b3ab5ab3d0c7b56c55b011, key: M, size: 2280, interface: PCIe 4.0 x4 |
| pcie slots | id: 69b3ab5ab3d0c7b56c55b00c, gen: 5.0, lanes: 16, quantity: 1, id: 69b3ab5ab3d0c7b56c55b00d, gen: 4.0, lanes: 16, quantity: 1 |
| ecc support | true |
| form factor | ATX |
| usb headers usb 4 | 0 |
| usb headers usb 2 0 | 2 |
| usb headers usb 4 80g | 0 |
| usb headers usb 3 2 gen 1 | 2 |
| usb headers usb 3 2 gen 2 | 0 |
| usb headers usb 3 2 gen 2x2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | true |
| storage devices u2 | 0 |
| storage devices sata 3 gb s | 0 |
| storage devices sata 6 gb s | 2 |
| back panel ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode), 6 x USB 10Gbps port(s) (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge), 4 x USB 5Gbps port(s) (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| onboard ethernet | id: 69b3ab5ab3d0c7b56c55b012, speed: 2.5 Gb/s, controller: Intel® |
| back connect connectors | false |
