audio chipset	Realtek
audio channels	7.1
memory max	256
memory slots	4
memory ram type	DDR5
socket	AM5
chipset	AMD X870
m2 slots	id: 69b3ab9cb27c54a042cfda09, key: M, size: 2242/2260/2280, interface: PCIe 5.0 x 4, id: 69b3ab9cb27c54a042cfda0a, key: M, size: 2280/22110, interface: PCIe 5.0 x 4, id: 69b3ab9cb27c54a042cfda0b, key: M, size: 2280, interface: PCIe 4.0 x4, id: 69b3ab9cb27c54a042cfda0c, key: M, size: 2280, interface: PCIe 4.0 x4, id: 69b3ab9cb27c54a042cfda0d, key: M, size: 2280, interface: PCIe 4.0 x4
pcie slots	id: 69b3ab9cb27c54a042cfda07, gen: 5.0, lanes: 16, quantity: 1, id: 69b3ab9cb27c54a042cfda08, gen: 4.0, lanes: 4, quantity: 1
ecc support	true
fan headers pump	1
fan headers cpu fan	1
fan headers cpu opt	1
fan headers case fan	5
form factor	ATX
rgb headers argb 5v	3
rgb headers rgb 12v	0
usb headers usb 4	0
usb headers usb 2 0	2

usb headers usb 3 2 gen 1	2
usb headers usb 3 2 gen 2	0
usb headers usb 3 2 gen 2x2	1
raid support	true
bios features flashback	true
bios features clear cmos	true
other headers temperature sensor	1
storage devices u2	0
storage devices sata 3 gb s	0
storage devices sata 6 gb s	2
back panel ports	2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge), 4 x USB 5Gbps ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
onboard ethernet	id: 69b3ab9cb27c54a042cfda0e, speed: 2.5 Gb/s, controller: Intel
power connectors cpu power	8-pin, 8-pin
power connectors main power	24-pin
front panel headers hdd led	true
front panel headers power led	true
front panel headers power button	true
front panel headers reset button	true
wireless networking	Wifi 7 Bluetooth® v5.4
back connect connectors	false

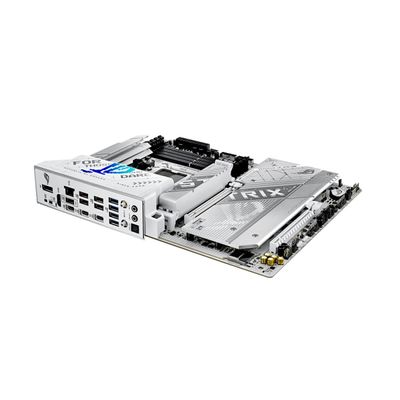

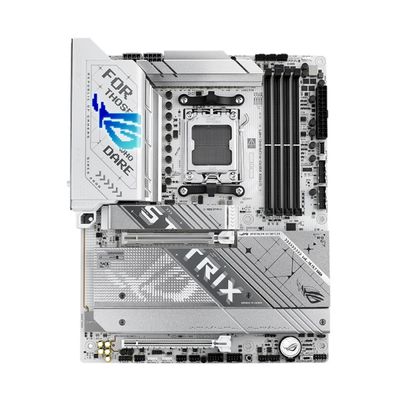

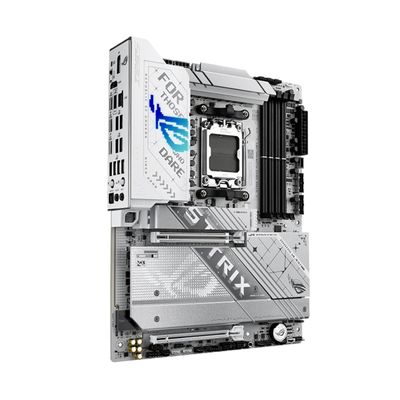

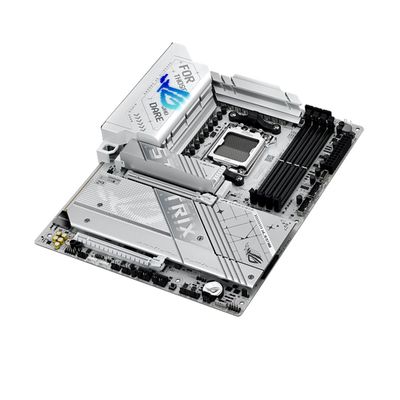

Asus - ROG STRIX X870-A GAMING WIFI
