NoBrand · Motherboard

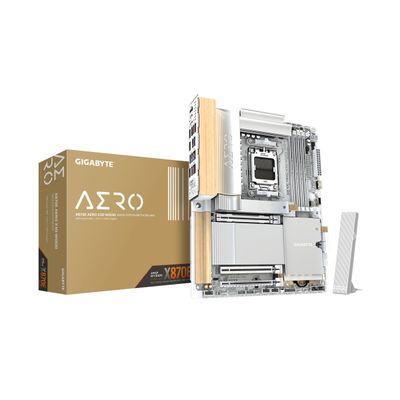

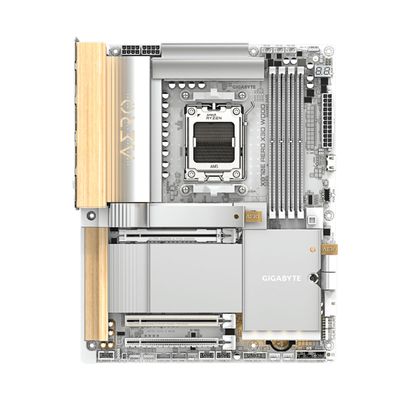

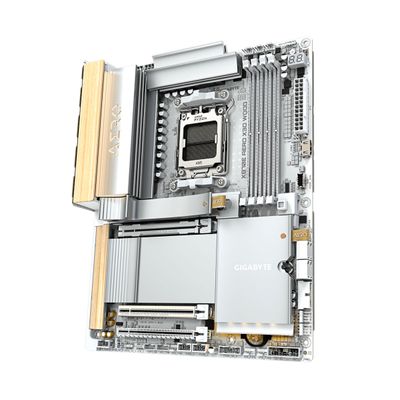

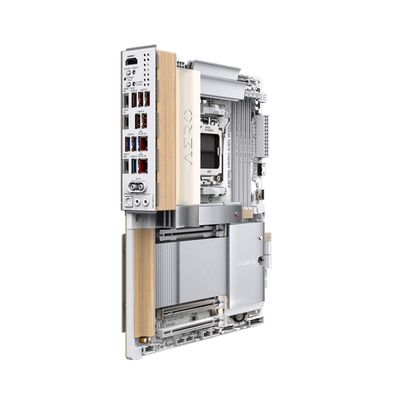

GIGABYTE - X870E Aero X3D Wood
Part #X870E AERO X3D WOOD
audio chipset: Realtek ALC1220audio channels: 7.1memory max: 256memory slots: 4
Хамгийн бага үнэ
₮ 2,500,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 2,500,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek ALC1220 |
| audio channels | 7.1 |
| memory max | 256 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD X870E |
| m2 slots | key: M, size: 2580/2280, interface: PCIe 5.0 x4, key: M, size: 22110/2280, interface: PCIe 5.0 x4, key: M, size: 22110/2280, interface: PCIe 4.0 x4, key: M, size: 22110/2280, interface: PCIe 4.0 x4 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 5.0, lanes: 8, quantity: 1, gen: 4.0, lanes: 4, quantity: 1 |
| fan headers pump | 2 |
| fan headers cpu fan | 1 |
| fan headers case fan | 4 |
| form factor | ATX |
| rgb headers argb 5v | 3 |
| rgb headers rgb 12v | 1 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 2 |
| usb headers usb 3 2 gen 2x2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | true |
| other headers temperature sensor | 2 |
| storage devices sata 6 gb s | 4 |

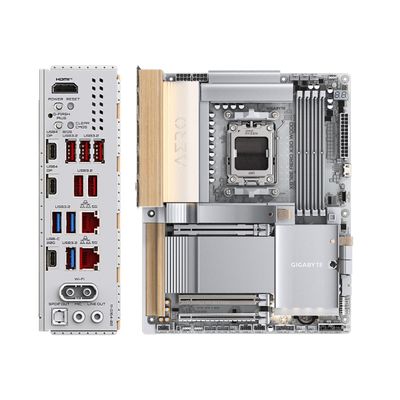

| back panel ports | 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x power button, 1 x reset button, 1 x HDMI port, 2 x USB4® USB Type-C® ports, 1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 5 x USB 3.2 Gen 2 Type-A ports, 3 x USB 3.2 Gen 1 ports, 2 x RJ-45 ports, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector |
| power connectors cpu power | 8-pin, 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | Wi-Fi 7 Bluetooth 5.4 |
