Asus · Motherboard

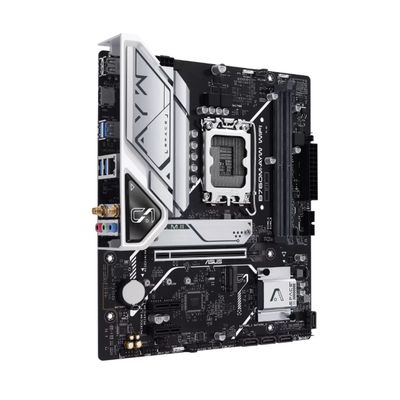

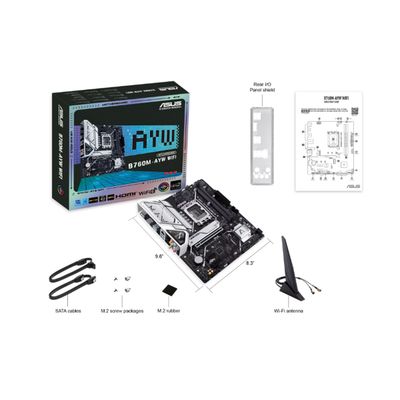

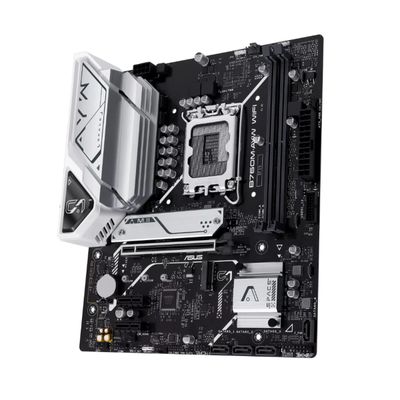

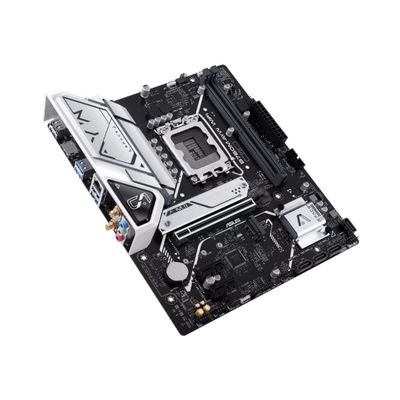

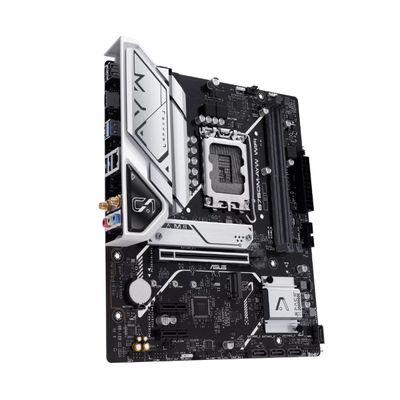

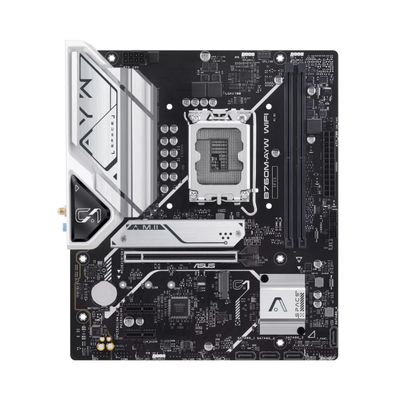

ASUS B760M - AYW WIFI DDR5
Part #B760M-AYW WIFI
audio chipset: Realtekaudio channels: 7.1memory max: 96memory slots: 2
Хамгийн бага үнэ
₮ 500,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 500,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek |
| audio channels | 7.1 |
| memory max | 96 |
| memory slots | 2 |
| memory ram type | DDR5 |
| socket | LGA 1700 |
| chipset | Intel B760 |
| m2 slots | key: M, size: 2242/2260/2280, interface: PCIe 4.0 x4, key: M, size: 2242/2260/2280, interface: PCIe 4.0 x4 |
| pcie slots | gen: 4.0, lanes: 16, quantity: 1, gen: 4.0, lanes: 1, quantity: 2 |
| ecc support | false |
| fan headers cpu fan | 1 |
| fan headers case fan | 1 |
| form factor | Micro ATX |
| rgb headers argb 5v | 3 |
| usb headers usb 4 | 0 |
| usb headers usb 2 0 | 1 |
| usb headers usb 3 2 gen 1 | 1 |
| usb headers usb 3 2 gen 2 | 0 |
| usb headers usb 3 2 gen 2x2 | 0 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | false |
| other headers com port | 1 |
| storage devices u2 | 0 |
| storage devices sata 3 gb s | 0 |
| storage devices sata 6 gb s | 4 |
| back panel ports | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks |
| onboard ethernet | speed: 2.5 Gb/s, controller: Realtek |
| power connectors cpu power | 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | WiFi 6 Bluetooth 5.3 |
| back connect connectors | false |
