Gigabyte · Motherboard
Part #B850M AORUS ELITE
Gigabyte B850M Aorus Elite
audio chipset: Realtekaudio channels: 7.1memory max: 256memory slots: 4
Хамгийн бага үнэ
Байна₮ 640,000
Дэлгүүрүүд
GodMode.mnХямд
₮ 640,000
Байна
Үнийн түүх
Тех. үзүүлэлт
| audio chipset | Realtek |
| audio channels | 7.1 |
| memory max | 256 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD B850 |
| lighting | ARGB, RGB |
| m2 slots | key: M, size: 25110/22110/2580/2280, interface: PCIe 5.0 x4, key: M, size: 22110/2280, interface: PCIe 4.0 x4 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 3.0, lanes: 4, quantity: 1 |
| ecc support | false |
| fan headers pump | 2 |
| fan headers cpu fan | 1 |
| fan headers case fan | 3 |
| form factor | Micro ATX |
| identifiers version | 1 |
| identifiers identifiers | type: mpn, value: B850M AORUS ELITE, region: all |
| rgb headers argb 5v | 3 |
| rgb headers rgb 12v | 1 |
| usb headers usb 4 | 0 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 1 |
| usb headers usb 3 2 gen 2 | 0 |
| usb headers usb 3 2 gen 2x2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | false |
| other headers temperature sensor | 1 |
| storage devices u2 | 0 |
| storage devices sata 3 gb s | 0 |
| storage devices sata 6 gb s | 4 |

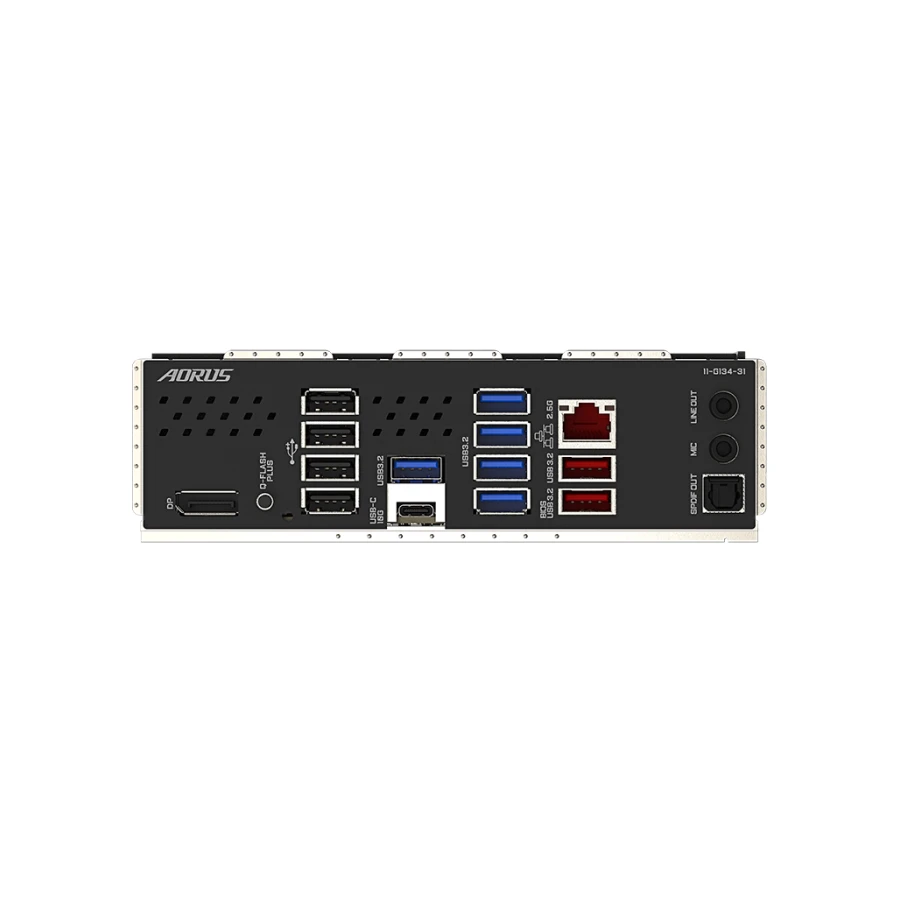

| back panel ports | 1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1 ports, 5 x USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector |
| onboard ethernet | speed: 2.5 Gb/s, controller: Realtek |
| power connectors cpu power | 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | None |
| back connect connectors | false |
