MSI · Motherboard

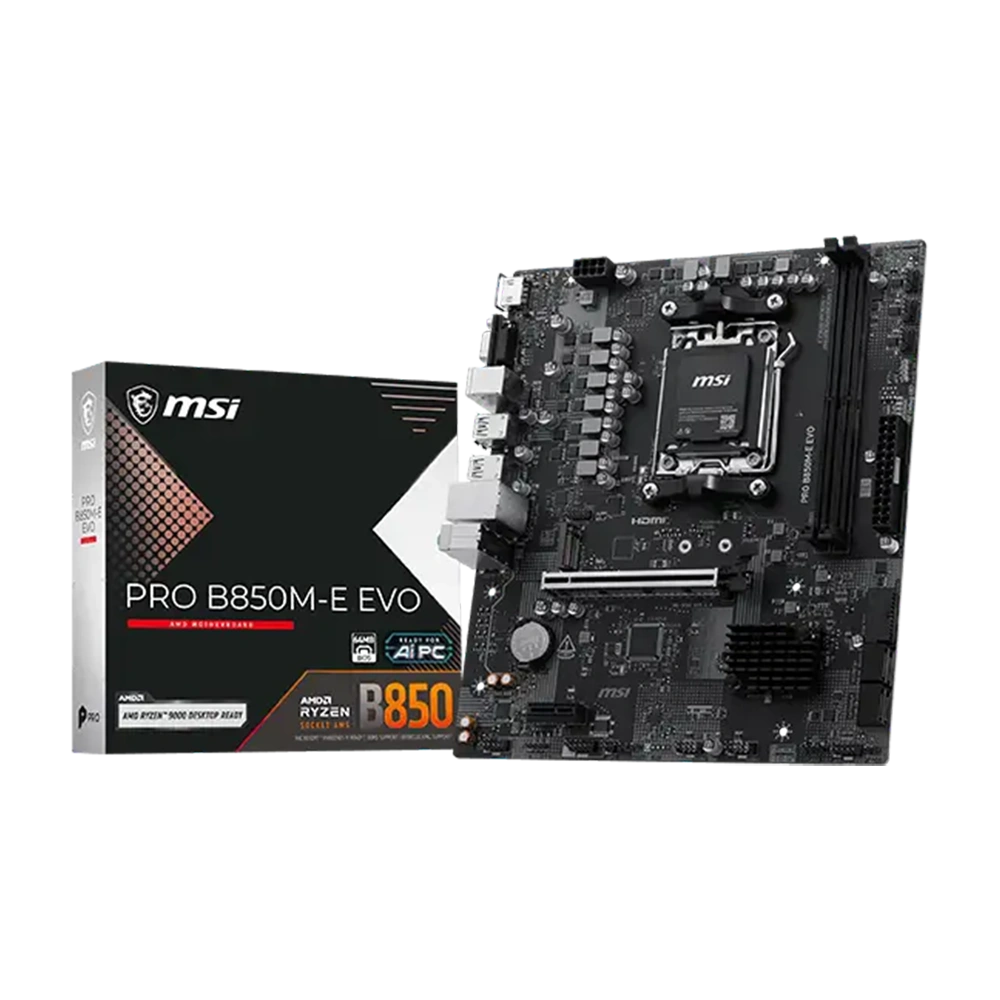

MSI Pro B850M-E EVO D5 Board
audio chipset: Realtek ALC897audio channels: 7.1memory max: 128memory slots: 2
Хамгийн бага үнэ
Байна₮ 420,000
Дэлгүүрүүд
NewTech.mnХямд
₮ 420,000
Байна
Үнийн түүх
Тех. үзүүлэлт
| audio chipset | Realtek ALC897 |
| audio channels | 7.1 |
| memory max | 128 |
| memory slots | 2 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD B850 |
| lighting | None |
| m2 slots | key: M, size: 2260/ 2280, interface: PCIe 5.0 x4 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 4.0, lanes: 4, quantity: 1, gen: 3.0, lanes: 1, quantity: 1 |
| ecc support | false |
| fan headers cpu fan | 1 |
| fan headers case fan | 2 |
| form factor | Micro ATX |
| identifiers version | 1 |
| rgb headers argb 5v | 1 |
| rgb headers rgb 12v | 1 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 1 |
| raid support | true |
| bios features flashback | false |
| bios features clear cmos | false |
| other headers com port | 1 |
| other headers temperature sensor | 0 |
| storage devices sata 6 gb s | 4 |
| back panel ports | 1x HDMI port, 1x VGA port, 1x PS/2 mouse port, 1x PS/2 keyboard port, 2x USB 5Gbps Type-A ports, 2x USB 5Gbps Type-A ports, 1x USB 2.0 Type-A port, 1x USB 2.0 Type-A port, 1x 2.5Gbps LAN port, 3x Audio jacks |
| onboard ethernet | speed: 2.5 Gb/s, controller: Realtek 8125 2.5G LAN |
| power connectors cpu power | 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| back connect connectors | false |
