Asus · Motherboard

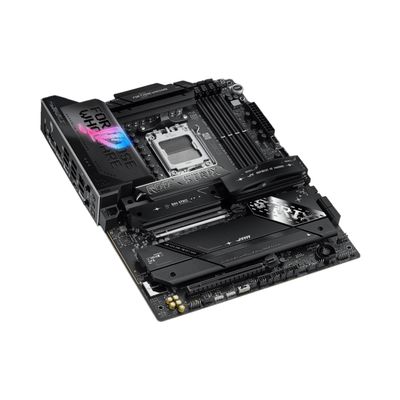

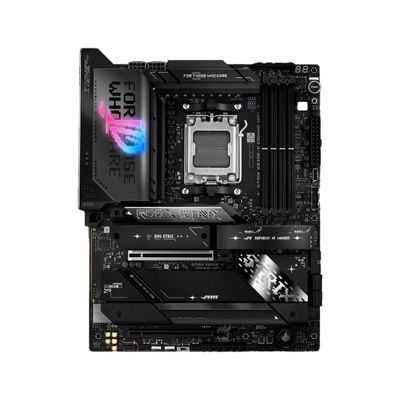

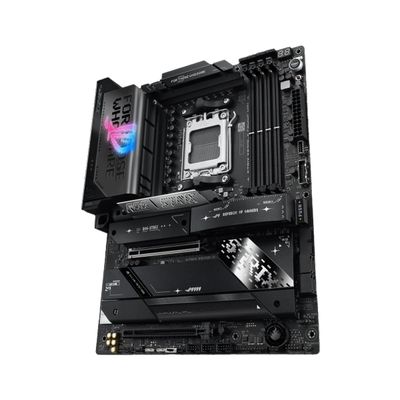

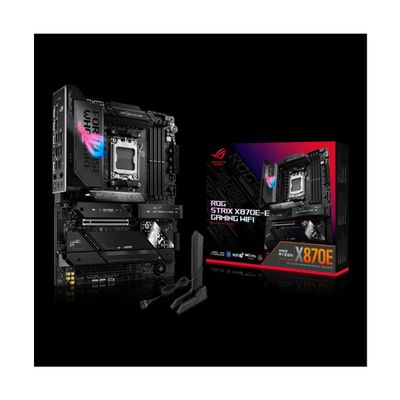

Asus - Rog Strix X870E-E Gaming Wifi
Part #90MB1IB0-M0EAY0
audio chipset: Realtek ALC4080audio channels: 7.1memory max: 256memory slots: 4
Хамгийн бага үнэ
₮ 2,000,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 2,000,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek ALC4080 |
| audio channels | 7.1 |
| memory max | 256 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD X870E |
| m2 slots | key: M, size: 2242/2260/2280, interface: PCIe 5.0 x4, key: M, size: 2242/2260/2280, interface: PCIe 5.0 x4, key: M, size: 2242/2260/2280/22110, interface: PCIe 5.0 x4, key: M, size: 2280, interface: PCIe 4.0 x4, key: M, size: 2280, interface: PCIe 4.0 x4 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 4.0, lanes: 4, quantity: 1 |
| ecc support | true |
| fan headers pump | 1 |
| fan headers cpu fan | 1 |
| fan headers cpu opt | 1 |
| fan headers case fan | 5 |
| form factor | ATX |
| rgb headers argb 5v | 3 |
| usb headers usb 2 0 | 3 |
| usb headers usb 3 2 gen 1 | 2 |
| usb headers usb 3 2 gen 2x2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | true |
| other headers temperature sensor | 1 |
| storage devices sata 6 gb s | 4 |
| back panel ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C), 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge), 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C), 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| onboard ethernet | speed: 5 Gb/s, controller: Realtek |
| power connectors cpu power | 8-pin, 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | Wi-Fi 7 Bluetooth 5.4 |
| back connect connectors | false |
