MSI · Motherboard
Part #Z890SWIFI

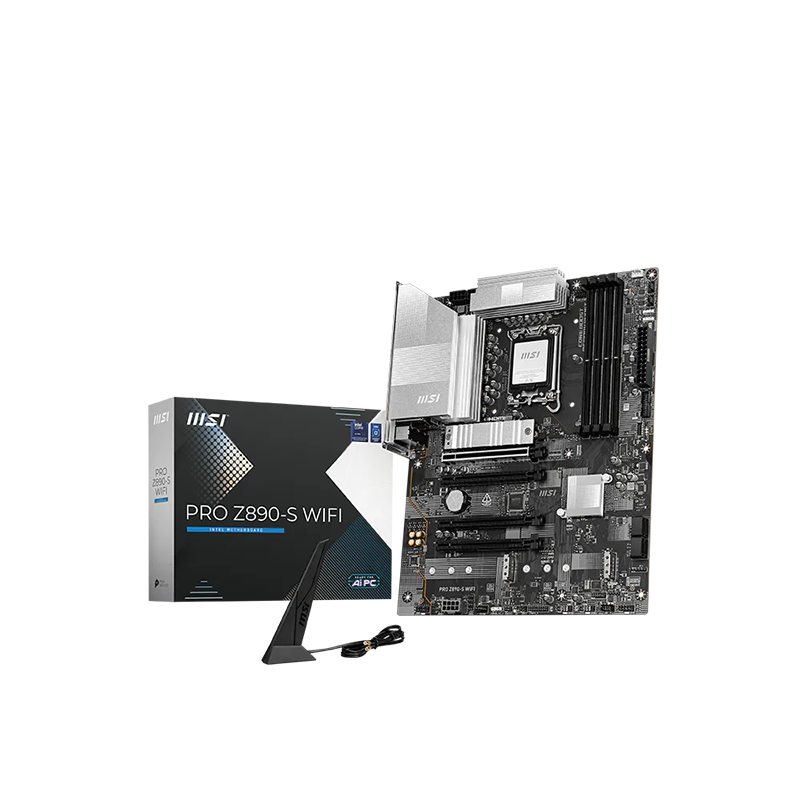

MSI Pro Z890-S WiFi6e D5 Board
audio chipset: Realtekaudio channels: 7.1memory max: 256memory slots: 4
Хамгийн бага үнэ
Байна₮ 750,000
Дэлгүүрүүд
NewTech.mn
ХямдХямд
₮ 750,000
Байна
Үнийн түүх
Тех. үзүүлэлт
| audio chipset | Realtek |
| audio channels | 7.1 |
| memory max | 256 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | LGA 1851 |
| chipset | Intel Z890 |
| m2 slots | key: M, size: 2242/2260/2280, interface: PCIe 5.0 x4, key: M, size: 2242/2260/2280, interface: PCIe 4.0 x4, key: M, size: 2242/2260/2280, interface: PCIe 4.0 x4 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 4, gen: 3.0, lanes: 1, quantity: 1, gen: 4.0, lanes: 4, quantity: 2 |
| ecc support | false |
| fan headers pump | 1 |
| fan headers cpu fan | 1 |
| fan headers case fan | 4 |
| form factor | ATX |
| rgb headers argb 5v | 3 |
| rgb headers rgb 12v | 1 |
| usb headers usb 4 | 0 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 1 |
| usb headers usb 3 2 gen 2 | 0 |
| usb headers usb 3 2 gen 2x2 | 1 |
| raid support | true |
| bios features flashback | false |
| bios features clear cmos | false |
| storage devices u2 | 0 |
| storage devices sata 3 gb s | 0 |
| storage devices sata 6 gb s | 4 |
| back panel ports | 1 x DisplayPort, 1 x HDMI port, 1 x Thunderbolt 4 USB-C port, 1 x USB 20Gbps Type-C port, 6 x USB 5Gbps Type-A ports, 1 x 2.5G LAN (RJ45) port, 2 x Wi-Fi antenna connectors, 3 x Audio jacks |
| onboard ethernet | speed: 2.5 Gb/s, controller: Realtek 8125D |
| power connectors cpu power | 8-pin, 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | Wi-Fi 7 Bluetooth 5.4 |
| back connect connectors | false |
