Asrock · Motherboard
Asrock - Phantom Gaming X870E Nova WiFi /AMD/
Part #X870E NOVA WIFI
audio chipset: Realtek ALC4082audio channels: 7.1memory max: 256memory slots: 4
Хамгийн бага үнэ
₮ 1,350,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 1,350,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek ALC4082 |
| audio channels | 7.1 |
| memory max | 256 |
| memory slots | 4 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD X870E |
| m2 slots | key: M, size: 2280, interface: PCIe 5.0 x4, key: M, size: 2280, interface: PCIe 4.0 x4, key: M, size: 2280, interface: PCIe 4.0 x4, key: M, size: 2280, interface: PCIe 4.0 x4, key: M, size: 2280, interface: PCIe 3.0 x2 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 3.0, lanes: 1, quantity: 1, gen: 3.0, lanes: 2, quantity: 1 |
| ecc support | true |
| fan headers pump | 1 |
| fan headers cpu fan | 2 |
| fan headers cpu opt | 1 |
| fan headers case fan | 3 |
| form factor | ATX |
| rgb headers argb 5v | 3 |
| rgb headers rgb 12v | 1 |
| usb headers usb 4 | 0 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 2 |
| usb headers usb 3 2 gen 2 | 0 |
| usb headers usb 3 2 gen 2x2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | true |
| other headers temperature sensor | 1 |
| storage devices u2 | 0 |
| storage devices sata 3 gb s | 0 |
| storage devices sata 6 gb s | 2 |

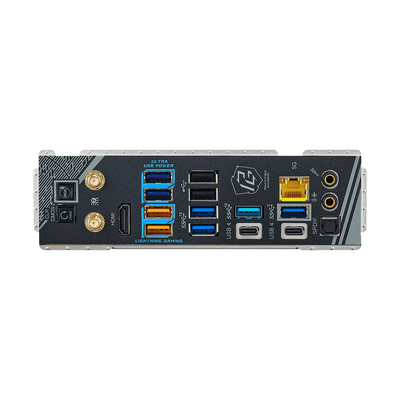

| back panel ports | 1 x 5 Gb/s Ports (Realtek 8126), 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x Clear CMOS Button, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack) |
| onboard ethernet | speed: 5 Gb/s, controller: Realtek 8126 |
| power connectors cpu power | 8-pin, 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | Wi-Fi 7 Bluetooth 5.4 |
| back connect connectors | false |
