Asus · Motherboard

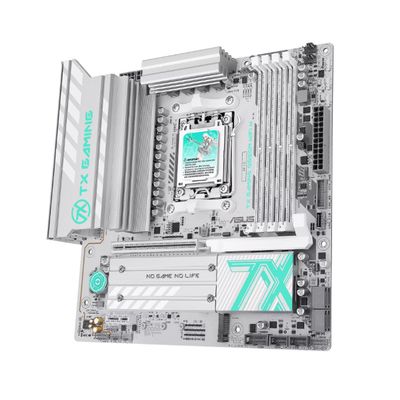

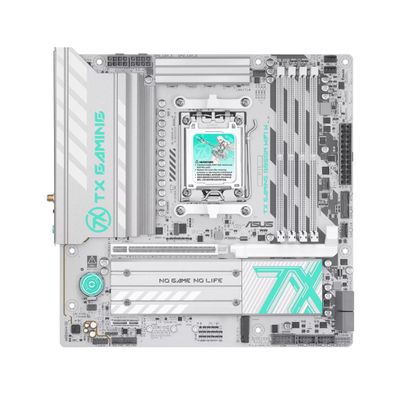

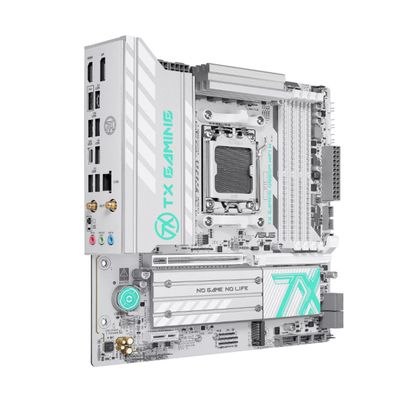

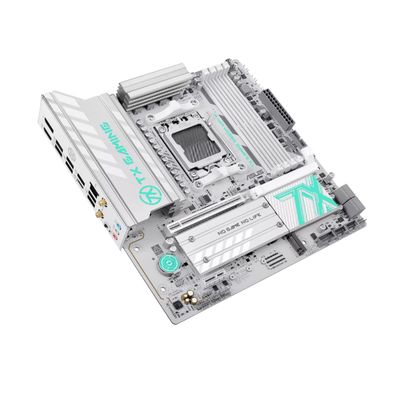

Asus - TX GAMING B850M WIFI W
Part #B850M-AYW-GAMING-OC-WIFI7-W
audio chipset: Realtekaudio channels: 7.1memory max: 128memory slots: 2
Хамгийн бага үнэ
₮ 730,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 730,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek |
| audio channels | 7.1 |
| memory max | 128 |
| memory slots | 2 |
| memory ram type | DDR5 |
| socket | AM5 |
| chipset | AMD B850 |
| lighting | None |
| m2 slots | key: M, size: 2242/2260/2280, interface: PCIe 5.0 x4, key: M, size: 2280, interface: PCIe 4.0 x4 |
| pcie slots | gen: 5.0, lanes: 16, quantity: 1, gen: 4.0, lanes: 4, quantity: 1 |
| ecc support | false |
| fan headers pump | 1 |
| fan headers cpu fan | 1 |
| fan headers cpu opt | 1 |
| fan headers case fan | 3 |
| form factor | Micro ATX |
| rgb headers argb 5v | 3 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 1 |
| usb headers usb 3 2 gen 2 | 1 |
| raid support | true |
| bios features flashback | true |
| bios features clear cmos | true |
| other headers com port | 1 |
| storage devices sata 6 gb s | 2 |
| back panel ports | 1 x USB 20Gbps port (1 x USB Type-C), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| onboard ethernet | speed: 2.5 Gb/s, controller: Realtek |
| power connectors cpu power | 8-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | Wi-Fi 7 Bluetooth 5.4 |
| back connect connectors | false |
