MSI · Motherboard

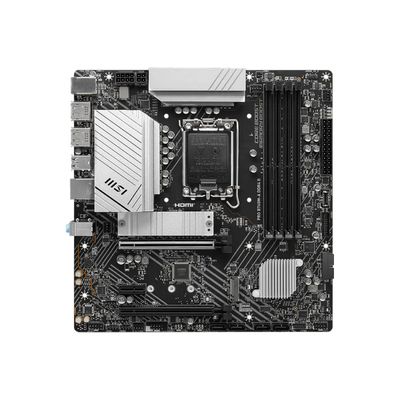

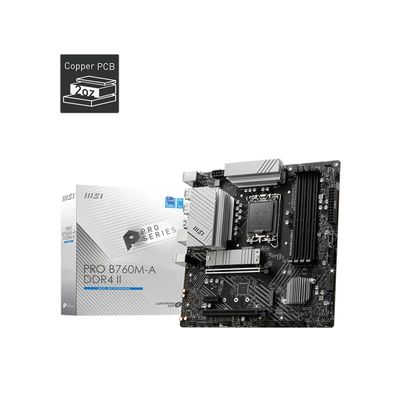

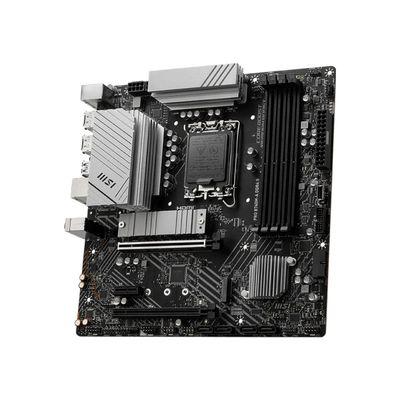

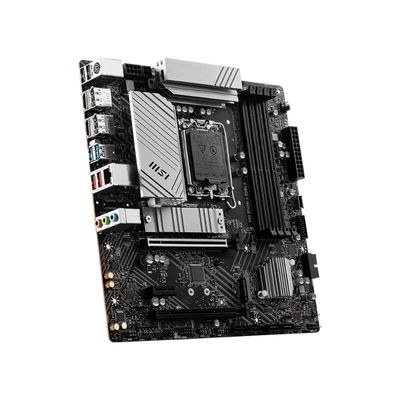

MSI - PRO B760M-A DDR4 II
Part #PRO B760M-A WIFI DDR4
audio chipset: Realtek ALC897audio channels: 7.1memory max: 128memory slots: 4
Хамгийн бага үнэ
₮ 500,000
Дэлгүүрүүд
Hitech.mnХямд
Хүргэлт үнэгүй
₮ 500,000
Байна
Тех. үзүүлэлт
| audio chipset | Realtek ALC897 |
| audio channels | 7.1 |
| memory max | 128 |
| memory slots | 4 |
| memory ram type | DDR4 |
| socket | LGA 1700 |
| chipset | Intel B760 |
| m2 slots | id: 69b3aba3fe073ff824ef6552, key: M, size: 2280/2260/2242, interface: PCIe 4.0 x4, id: 69b3aba3fe073ff824ef6553, key: M, size: 2280/2260/2242, interface: PCIe 4.0 x4 |
| pcie slots | id: 69b3aba3fe073ff824ef654f, gen: 4.0, lanes: 16, quantity: 1, id: 69b3aba3fe073ff824ef6550, gen: 4.0, lanes: 4, quantity: 1, id: 69b3aba3fe073ff824ef6551, gen: 3.0, lanes: 1, quantity: 1 |
| ecc support | false |
| fan headers pump | 1 |
| fan headers cpu fan | 1 |
| fan headers case fan | 2 |
| form factor | Micro ATX |
| rgb headers argb 5v | 2 |
| rgb headers rgb 12v | 1 |
| usb headers usb 4 | 0 |
| usb headers usb 2 0 | 2 |
| usb headers usb 3 2 gen 1 | 2 |
| usb headers usb 3 2 gen 2 | 1 |
| usb headers usb 3 2 gen 2x2 | 0 |
| raid support | true |
| bios features flashback | false |
| bios features clear cmos | false |
| other headers com port | 1 |
| storage devices u2 | 0 |
| storage devices sata 3 gb s | 0 |
| storage devices sata 6 gb s | 4 |
| back panel ports | 1 x PS/2 Mouse/Keyboard combo port, 2 x USB 2.0 Type-A ports, 2 x DisplayPort, 2 x HDMI™ 2.1 ports, 2 x USB 3.2 Gen 1 5Gbps Type-A ports, 1 x 2.5 Gbps LAN (RJ45) port, 2 x USB 3.2 Gen 2 10Gbps Type-A ports, 2 x Wi-Fi Antenna connectors, 3 x Audio jacks |
| onboard ethernet | id: 69b3aba3fe073ff824ef6554, speed: 2.5 Gb/s, controller: Realtek RTL8125B |
| power connectors cpu power | 8-pin, 4-pin |
| power connectors main power | 24-pin |
| front panel headers hdd led | true |
| front panel headers power led | true |
| front panel headers power button | true |
| front panel headers reset button | true |
| wireless networking | Wifi 6E Bluetooth 5.3 |
| back connect connectors | false |
